THUNDERBIRD
TRI-POWER KICKDOWN BRACKET
turn your WIMPY 4V Kickdown Bracket into
a POWERFUL THUNDERBIRD TRI-POWER KICKDOWN!
Pictures and step by step instructions!
(instructions below pictures)
(click on the pictures to enlarge them)

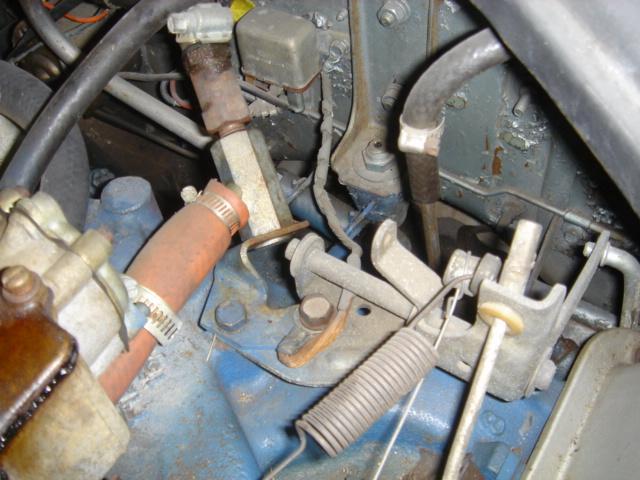

This is a picture of a 4V kickdown brack in place on the intake.

---

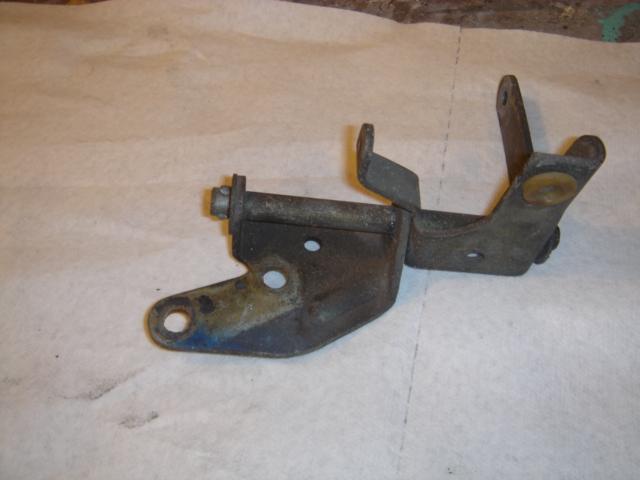

Here is the 4V kickdown on the workbench

---

You need to cut off the rod that runs through the kickdown.
You can cut either side somewhere in the middle of the opening
ie where the saw blade is laying

---

This shows the rod after cutting.

---

Take the piece from the right and it fits exactly inside the piece on the left.
re-insert the rod and cut it again about 1/4" longer than the brackets with
the 2 washers. Drill a 1/16" hole about 1/8" from the end and insert a
cotter pin through it and you're done!

---
